Electoral Systems Simulated - iPad app

This app lets you try the effect of different electoral (voting) systems. Their task is to calculate the number of seats (typically) in the parliament from number of votes for each political party. Systems may give proportional results, or prefer larger or smaller parties.

This app was used as a tool to analyze Czech parliamentry elections 2013, see the article (in Czech language), and again in 2017 with the analysis of potential pre-election coalitions, see the article (in Czech language).

Supported Parameters

Electoral systems can be very specific in each country, so only some most common parameters can be set in the application.

Methods

These are mathematical formulas that convert votes into seats in each electoral district. Both largest remainder methods and highest averages methods are implemented.

Division into Electoral Districts

Having the country divided into more districts helps larger parties. With increasing number of electoral districts, the number of seats available in each of them is decreasing, and it is more difficult for smaller parties to win any of them.

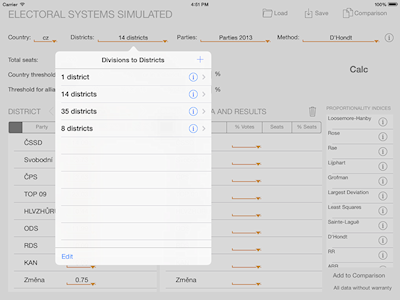

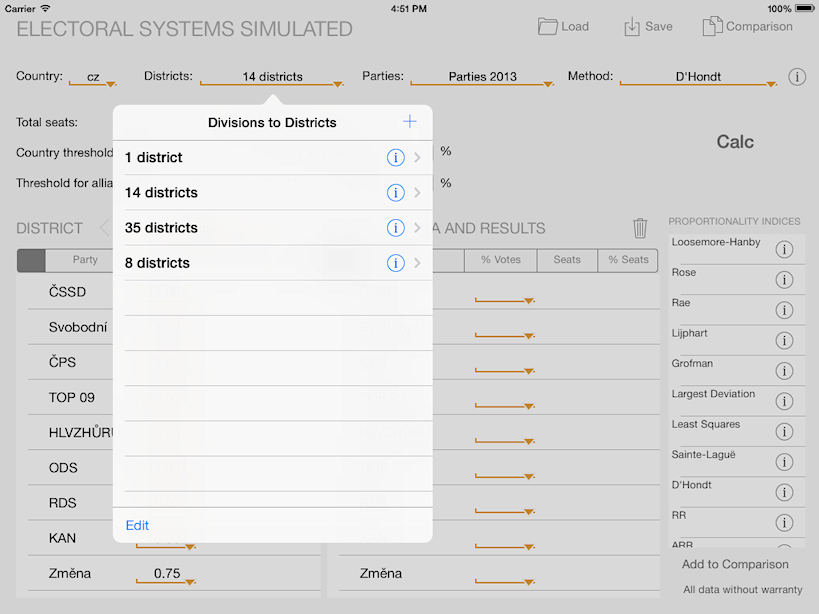

You can define the electoral districts inside the app, and set election results in each of them, or set the result only on the country level, that is automatically copied into all districts.

The app contains the example of different set of electoral districts in the Czech Republic, with division into 8 districts (till 1998), 14 districts (from 2002) and hypothetical divisions into 35 and 1 district.

Formal Election Thresholds

Thresholds represent the minimum vote share a party requires to secure representation. It can be set nationwide, on a per-district basis, or be set to zero at all. For example, Spain uses the system with 3% threshold in each district. Sweden has 4% nationwide threshold, but if the party reaches 12% in one district, it will be represented even if it does not reach the 4% level nationally.

It is also possible to set the special thresholds for alliances according to the number of their members.

Total Number of Seats, Bonus for Winner

And of course, you can set the total number of seats that is to be allocated with the system. It is also possible to set a majority bonus.

Pre-election Coalitions

Pre-election simulator lets you try, what if some parties formed a coalition instead of competing alone. Does the electoral system assigns more mandates? How much more?

Calculation is done by summing the votes of cooperating parties.

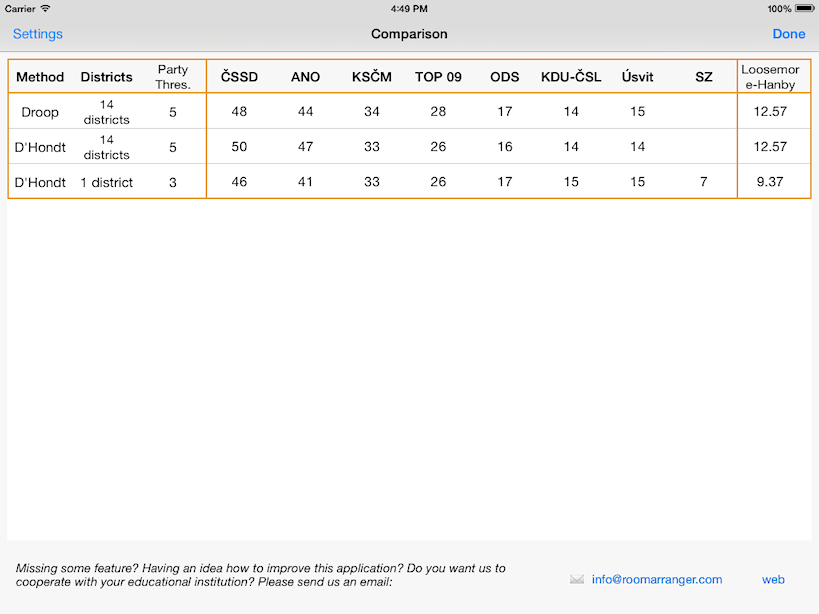

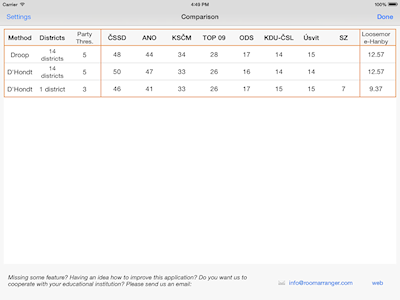

Comparison

Of course, you can compare the results of selected systems with each other. The app lets you add situations into the comparison table, and automatically shows the different input parameters with the results for each party that received representation.

Proportionality Indices

The app calculates several proportionality indices, that measure the systems according to their proportionality. Their scores can be displayed in the comparison table too.

Indices implemented (see descriptions inside the app):

Predefined Datasets

The app comes filled with datasets for the following parliamentary elections:

Contact

Developer: Jan Adamec
Email: rooarr@seznam.cz

Languages

The app is prepared to be translated to any language. Please contact me if you would like to translate it to yours. Thanks to all volunteers!

Further Work

I am open to cooperation with any educational or political institution to implement more features they would need. Please contact me.

Privacy Policy

The app does not collect any personal information nor data about app usage.

Past Work

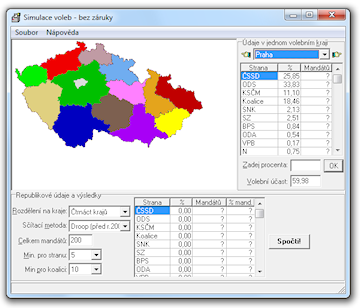

This app has 17 years of history (since 2000), when there was a discussion in my country about the changing the electoral system to be much less proportional. I wanted to try the effects of the changes so I made the Windows application, which enabled it. The current iPad app builds upon the functions developed there.

You can download the Windows version of this app here, but it does contain several minor bugs and mistakes, and setting up a new country is very difficult. And is in Czech only!

Download: volby120.zip (357 KB)
